SELF DRILLING ANCHOR BOLT
The self-drilling Hollow bar anchor system is comprised of a hollow threaded bar with an attached drill bit that can perform drilling, anchoring and grouting in a single operation. The hollow bar allows air and water to freely pass through the bar during drilling to remove debris and then allow grout to be injected immediately after drilling is completed. Grout fills the hollow bar and completely covers the entire bolt. Couplers can be used to join hollow bars and extend the bolt length while nuts and plates are used to provide the required tension.
SIGRICARE offers Self Drilling Anchors in variants of R25, R32, R38, R51 and T76 and their accessories including the Anchor Nut, Anchor Plate, Anchor Coupler and Drilling bits depending on the geological condition of the project site (Type EX, EXX, ES, ESS, EY, EΥΥ).
SELF DRILLING ANCHOR
| unit | R 25N | R 32L | R 32N | R 32S | R38 N | R51 L | R51 N | T 76N | T 76S | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Outer Diameter |
mm |
25.00 |
32.00 |
32.00 |
32.00 |
32.00 |
38.00 |
51.00 |
76.00 |
76.00 |
|
Inner Diameter |
mm |
14.00 |
22 |
20 |
18.5 |
22.00 |
36.00 |
33.00 |
51.00 |
47.00 |
|
Ultimate Load |
KN |
200 |
260 |
280 |
360 |
500 |
550 |
800 |
1600 |
1900 |
|
Yield Load |
KN |
150 |
200 |
230 |
280 |
400 |
450 |
630 |
1200 |
1500 |
ANCHOR COUPLER
| unit | R 25N | R 32L | R 32N | R 32S | R38 N | R51 L | R51 N | T 76N | T 76S | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Outer Dimension |
mm |
36 |
42 |
42 |
42 |
52 |
63 |
63 |
95 |
95 |
|
Length |
mm |
150 |
145 |
160 |
190 |
220 |
140 |
200 |
200 |
220 |
DRILL BIT
| EX | EXX | ESF | ESSF |
|---|---|---|---|
|
Hardened cross bit for loose to medium dense ground condition |
TC cross-bit for soft to medium rock formations |
Hardened button bit for unconsolidated rock with boulders |
TC button bit for medium rock formations |

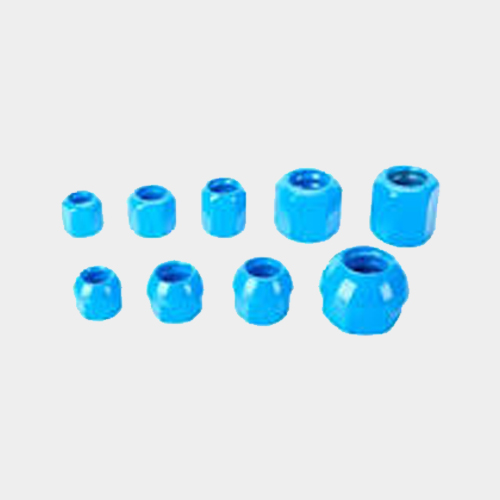

ANCHOR NUTS
| unit | R 25N | R 32L | R 32N | R 32S | R38 N | R51 L | R51 N | T 76N | T 76S | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Key Size |
mm |
41 |
46 |
46 |
46 |
50 |
75 |
75 |
100 |
100 |
|
Length |
mm |
35 |
45 |
45 |
65 |
60 |
70 |
70 |
80 |
80 |
ANCHOR PLATE
| unit | R 25N | R 32L | R 32N | R 32S | R38 N | R51 L | R51 N | T 76N | T 76S | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimension |
mm |
150×150 |
200×200 |
200×200 |
200×200 |
200×200 |
200×200 |
250×250 |
250×250 |
250×250 |
|
Thickness |
mm |
8 |
10 |
10 |
12 |
12 |
30 |
40 |
40 |
40 |
|
Hole Diameter |
KN |
30 |
35 |
35 |
35 |
41 |
60 |
60 |
80 |
80 |
